The right power supply for led strip
What is led driver for led strip light?
When we using led strip light , Can we connect the led strip light directly to the AC110V or AC220V ?The answer is "no". Normally the low voltage led strip light is has DC12V/DC24V. Actually led strip light also have DC3V, DC5V ,DC36V,DC48V led strip light. But widely used led strip is 12v and 24v, so let's talk about DC12V/24V led strip light.
Led strip light driver is transformer . It change the high voltage AC110V/220V to DC12V/24V. Then the led strip light can safe use.
Do you need a driver when you are using led strip light ?
When you are using led strip light , normally it is DC3V/DC5V/DC12V/DC24V/DC36V/DC48V. So you need to buy DC3V/DC5V/DC12V/DC24V/DC36V/DC48V output led power supply for the led strip light .

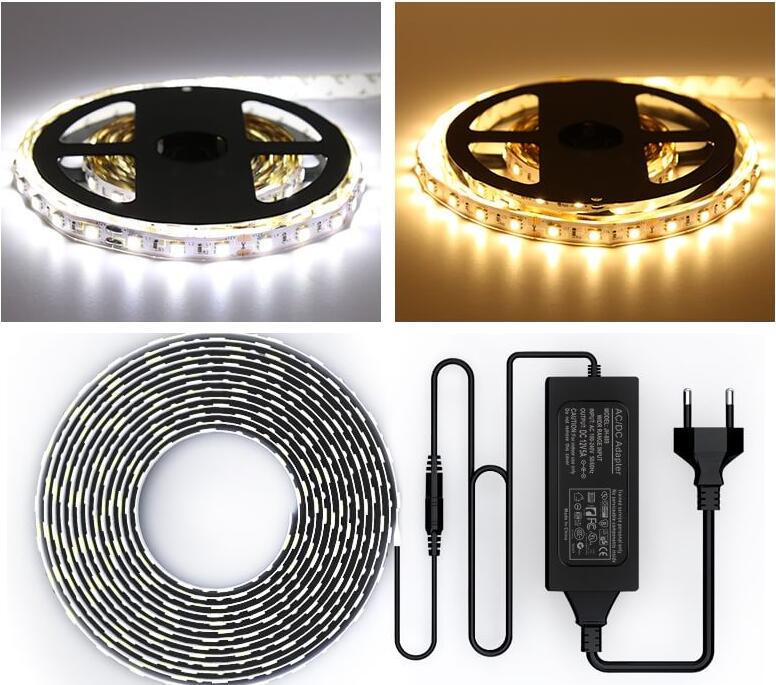

How to power the led strip light ?
Please check the following photo .
Points you need to think about before you are buying led power supply
When you are buying led power supply ,3 points you need to know . In this way you can choose the right led power supply , that will good for led strip light long life .
Outdoor/Indoor
You have to know where you are using the led strip light . Outdoor or indoor , the place humid or dry . If you are using outdoor in humid place ,or the place can be raining then you need waterproof power supply . If use indoor , the place is dry . Just like in ceiling , kitchen cabinet, TV cabinet ,then non-waterproof driver is enough.
Waterproof power supply
We can see from the appearance of the power supply . normally the shell is plastic or aluminum. The shell is seal like a sealed tin . Normally , It is using silicone sealant to seal electronic components.
Non-waterproof power supply
The Non-waterproof led driver normally as below. Outside shell is make by aluminum . And have holds for heat dissipation. The same wattage , not waterproof driver price is cheaper than waterproof driver.
DIY user/Home user
We DIY use ,the place not use many led strip light ,few meter led strip light , then we don't need to use BIG power supply , we can select the power supply as below. Wall-mounted power supply and desktop power supply. The wall mounted power supply normally the wattage is not big , 1A,2A,3A. Desktop power supply is bigger , 4A ,5A ,6A. So this will convenience for us only when we do some small DIY lighting .
Wall-Mounted Switching Power Supply
Desktop Power Supply
For some special request , some client need more function.
Dimming.
There are 3 kinds of dimmable power supply,different function:
I show you the three different way of the dimming . If you want to know more about dimming , you can email us : hd-pixels@hotmail.com

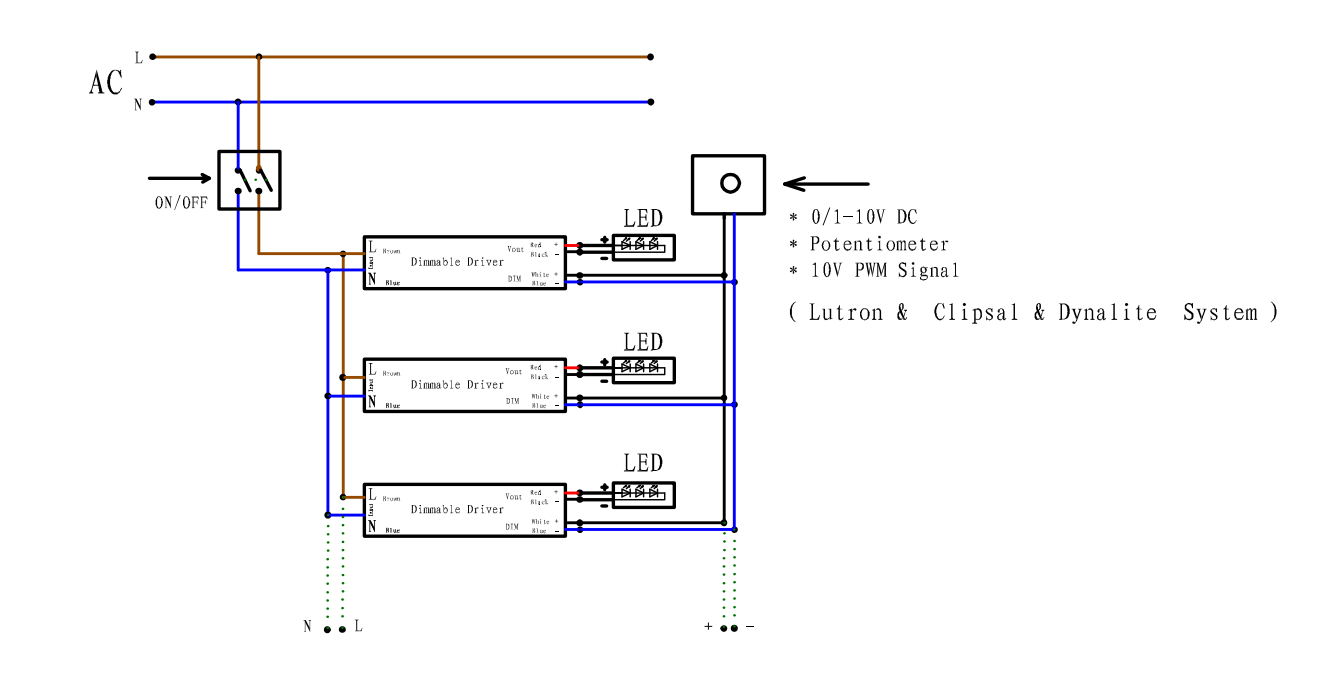

0/1-10V dimmable

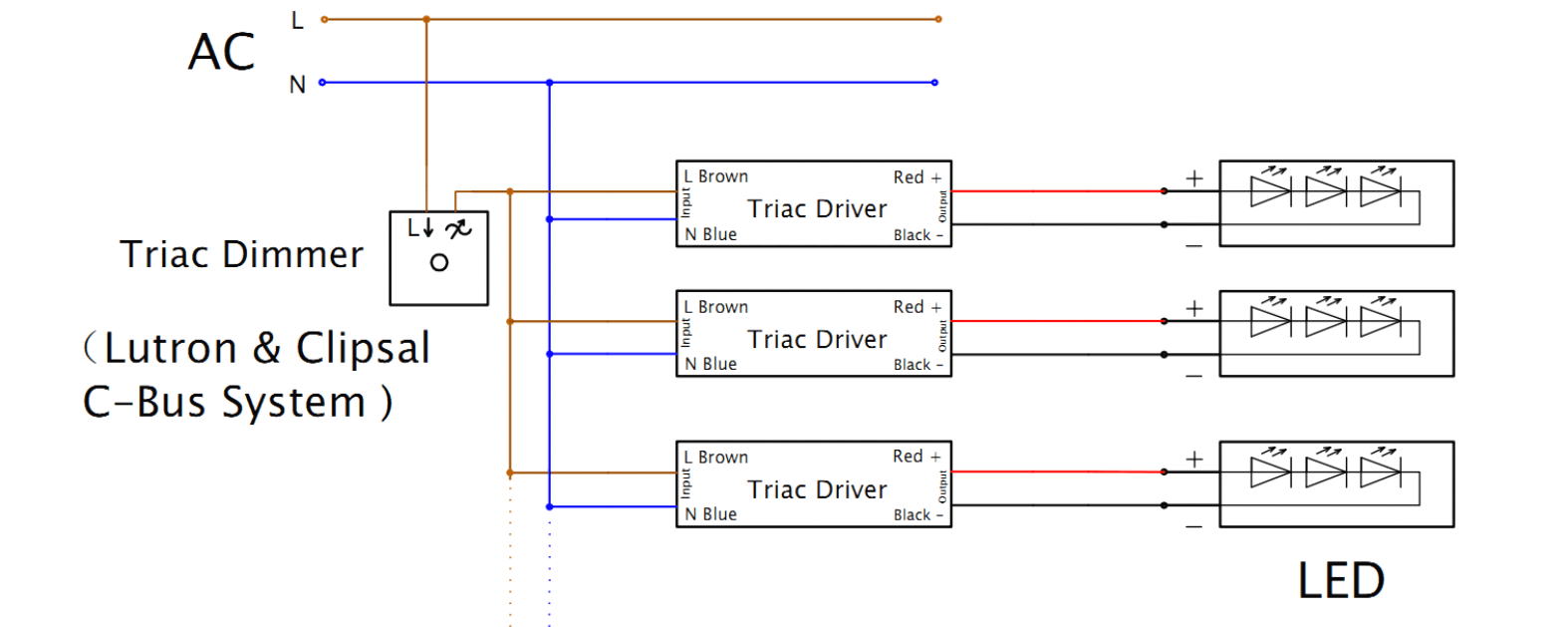

Triac dimmable

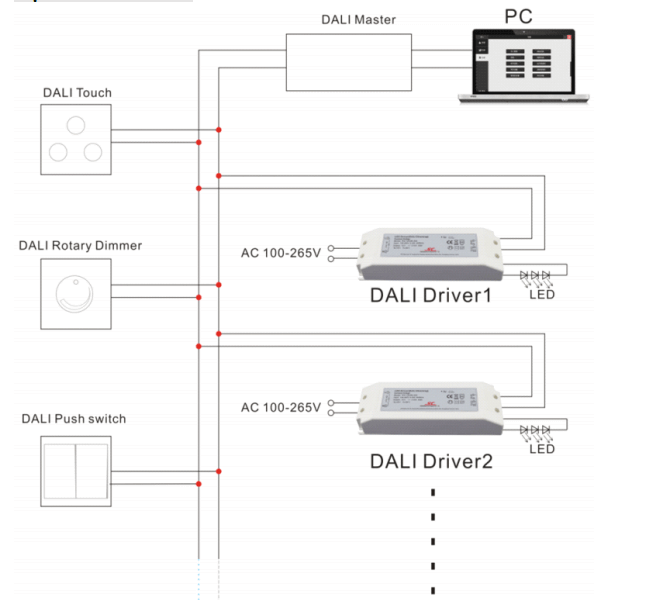

DALI dimmable
Use brand led driver
I suggest you buy brand led power supply . I use many power supply , but more or less they will have problem . And I use MEANWELL led power supply . Meanwell driver quality is good . Very very small quantity have quality problem . But Meanwell do less power supply in dimming power supply and very long delivery time . If you want more info about dimming power supply ,send us mail.
Hida is a quality LED chip and LED strip light manufacturer in China .We welcome client all over the world. Contact with us if you need any help: hd-pixels@hotmail.com
